Piercing Dies

Tooling mounted in die sets for the following applications and more. Custom manufactured to meet the specifications of your applications

  • Arbor piercing dies for clean, dimple-free holes in single and multiple walls
  • Arbor piercing dies, vertical and horizontal piercing applications
  • Arbor slotting dies for clean, dimple-free slots in single and multiple walls
  • Non mandrel piercing dies for dimpled holes one wall, dimple hole one wall, clean opposite
  • Non mandrel piercing die for dimpled holes both walls
  • Single station and multiple station dies

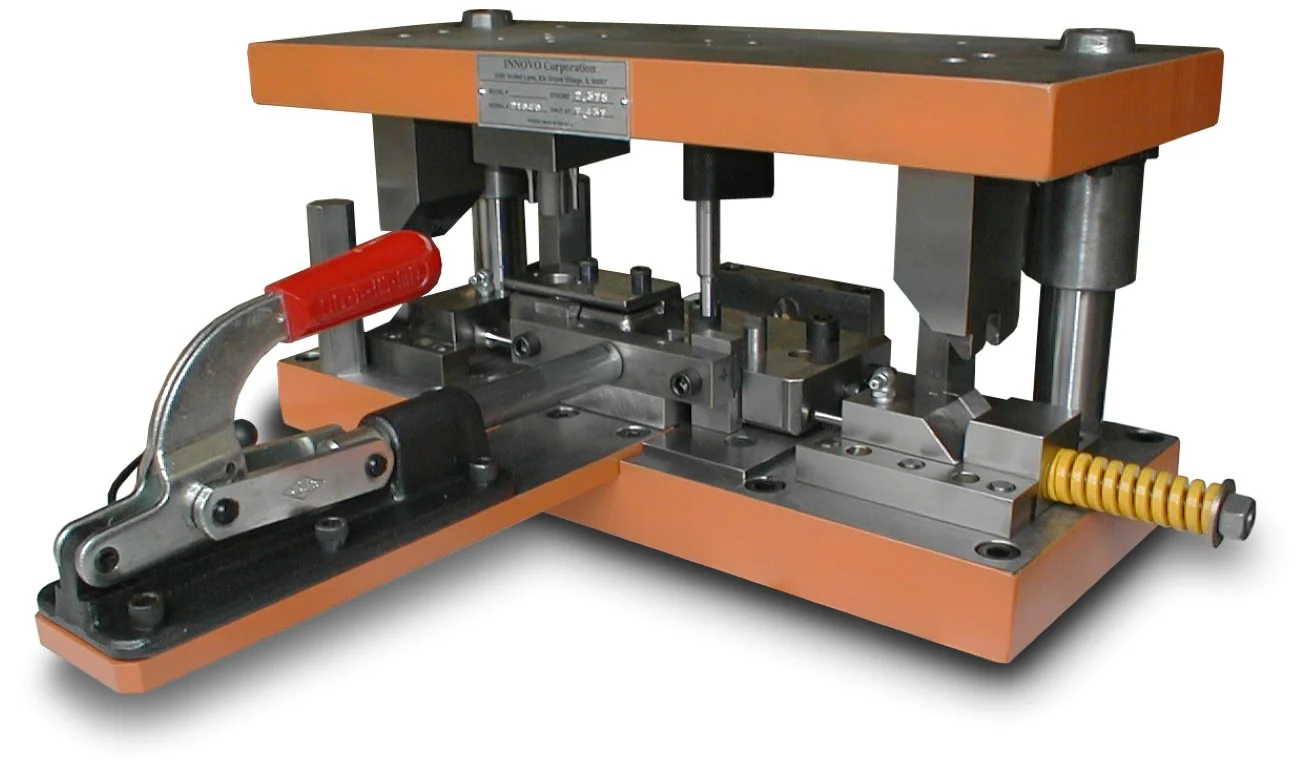

Single Hole Piercing Die built and produced by INNOVO Corp.
 Piercing Die for a custom application

Piercing Die for a custom application
